INDAR™ Electric Machines
INGEDRIVE™ Frequency Drives

For Marine Application

Our Products

Frequency Converters

Frequency Converters

300 kW up to 44 MW

X

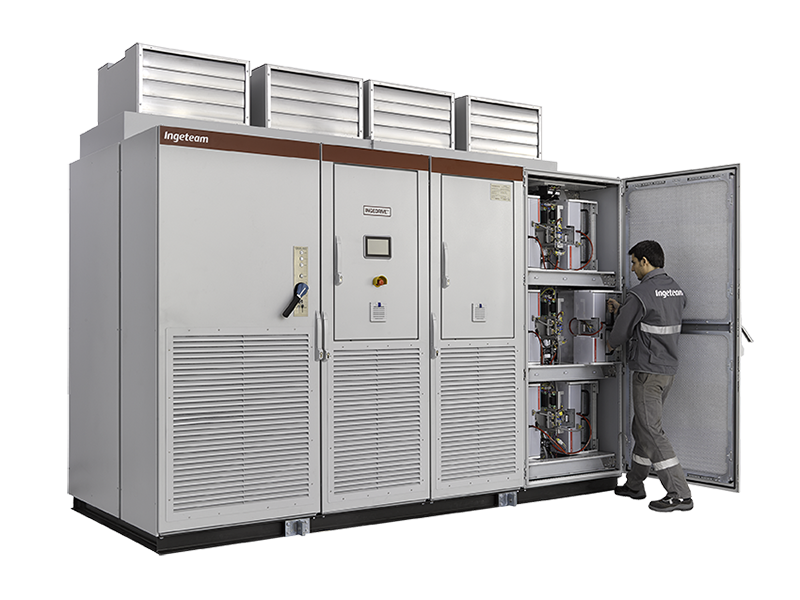

Frequency Converters

Frequency Converters

INGEDRIVE™ is a family of low- and medium-voltage modular AC drives designed for demanding single-motor or multi-motor applications handling and controlling synchronous, induction, and permanent magnet motors.

These drives are suitable for four-quadrant operation, driving and braking in both rotational directions. INGEDRIVE™ is designed to be a highly-efficient drive which significantly reduces energy consumption. Its modular design enables it to cover a wide range of powers and voltages while its intuitive structure makes it easy to use and maintain.

Years of experience have made it possible to incorporate two-, three- and five-level advanced vector control into low- and medium-voltage rectifiers and inverters, always using latest generation semiconductors. The powerful CCU (Converter Control Unit) communicates with power stacks via optic fibre. The result is a compact, flexible, safe, and user-friendly solution.

INGEDRIVE™ is available with power ratings up to 36 MVA, from 400V to 690V in low voltage and 3.3 kV to 6.6 kV in medium voltage, offering great performance, robustness, reliability, and long life expectancy.

For more info
CONTACT
BESS

BESS
[Battery Energy Storage System]

Up to 16 MVA

X

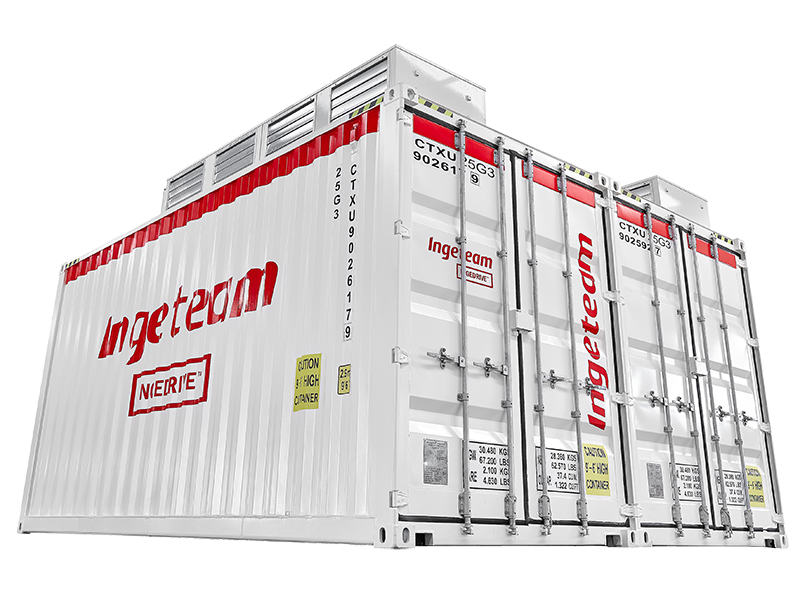

BESS

BESS* for hybrid solutions

(*) Battery Energy Storage System

Ingeteam’s Battery Energy Storage Systems (BESS) is a compact battery storage solution controlled by an optimized energy management system that enhances vessel’s power plant capabilities.

Ingeteam’s BESS turns any standard electric propulsion vessel into a latest generation hybrid-electric propulsion vessel.

Ingeteam’s BESS offers a compact and optimal solution, suitable to be installed in a newly built vessel or to upgrade standard electric plant. Designed for an easy integration, it provides considerable fuel savings, improving safeness and enabling efficient operation while reducing environmental impact.

Working principle and design

Ingeteam’s BESS stores energy during low demand conditions, returning it back to the grid when the demand increases. The Energy Management System is responsible for reaching the minimum fuel consumption for the possible combination of energy sources, complying with the restrictions inherent in the system.

Functionalities and capabilities

Adaptable to each vessel’s characteristics, BESS allows the following modes of operation:

  • Peak Shaving
  • Fixed Load: optimal rate of load change mode for fuel consumption reduction obtaining optimal efficiency.
  • Load Sharing: balance for enhanced power plant stability.
  • Dynamic Boost: enabling instant power support to running engines and utilizations of alternative energies such as solar panels or fuel cells.
  • 50/60 Hz shore connection: allowing cheap energy to be used and reducing running hours for generators, which can even be avoided during harbour operations.
  • Spinning reserve: backup power to running generators on DP operation mode or during full electric operations.
For more info
CONTACT
Electric Generators

Electric Generators

Up to 25 MVA

X

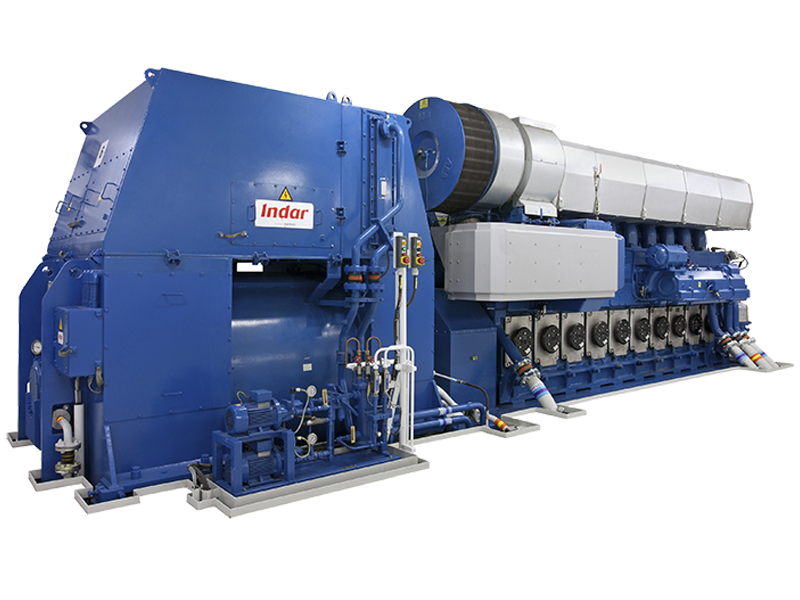

Electric Generators

Electric Generators

Our products are specially designed for application in the marine sector. By working in close collaboration with the manufacturers of diesel engines we are able to cater for the specific technical needs of each vessel, shipyard or ship-owner. Given the flexibility in their design, the INDAR (an INGETEAM brand) range of generators is manufactured in their standard format or custom-made according to each specific need. INDAR offers a wide range of power, speed, voltage and cooling systems.

The power ranges available in synchronous generators varies from 1,250 kVA to 35,000 kVA, with 690 Vac to 15 kVac voltage ranges.

Air or water-cooled, open or closed architecture, with brushes or brushless, with or without PMG. High performance and capacity to withstand the overloads and vibrations generated by drives.

The mechanical design, protection level and type of cooling are studied individually to ensure they are compliant with the specifications of the ship-owner/shipyard.

Equipped with AVR (Automatic Voltage Regulator) Generators are designed and manufactured according to the main international standards (IEC, NEMA, VDE) and classifications societies (BV, LR, DNV, GL, ABS, RINA, KR, RMRS, CCS, etc). The basic concept our INDAR SGI generators series (driven by Internal Combustion Engines where burning fuels are fossil fuel, biofuel, gas etc.) is its adaptability to the standards of each manufacturer.

For more info
CONTACT
Electric motors

Electric motors

Up to 25 MW

X

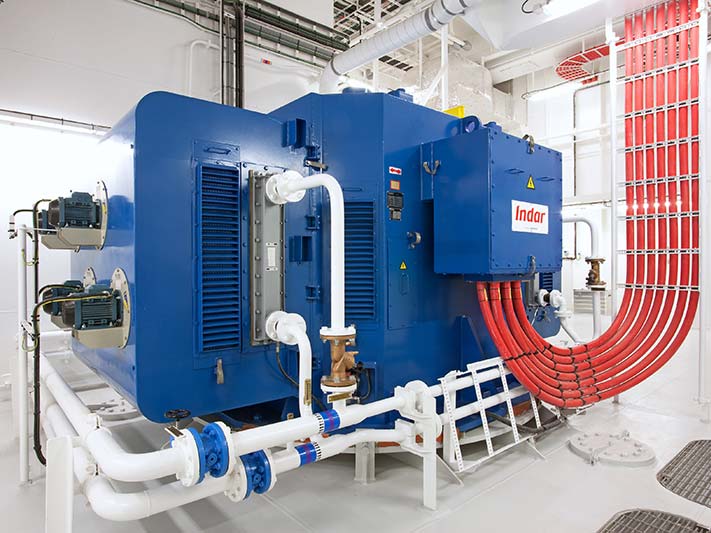

Electric motors

Electric motors

Indar offers customized machines based on customer requirements. The IM series of induction motors and SM series of synchronous motors are clear example of our versatility and adaptability to the client’s specific requirements based on standard criteria.

This flexibility allows us to cover markets as varied and demanding such as silent propulsion for oceanographic vessels in compliance with ICES 209 standards. All the motors in the IM and SM series can be fed both directly from the electrical gird and from frequency converters.

For more info
CONTACT

Electric Propulsion Topologies

THE CHOICE OF ONE OR OTHER TOPOLOGY HAS TO TAKE INTO ACCOUNT SEVERAL ASPECTS:

  • BRAKING NEED
  • INTEREST IN GETTING BACK THE MENTIONED ENERGY FOR OTHER CONSUMERS BY OPTIMIZING THE ENERGETIC BALANCE
  • REQUIRED IMPROVEMENT OF THE NETWORK POWER FACTOR
  • ADAPTABILITY TO A CORRECT SIZING ACCORDING TO POSSIBLE VARIATIONS IN THE INCOMING VOLTAGE
  • VOLUME AND COST OF THE EQUIPMENT
  • REQUIREMENT FOR INDUCTIVE OR CAPACITIVE LOAD PERFORMANCE OF THE CONVERTER, THAT COMPENSATES THE FACTOR OF THE NETWORK DISPLACEMENT

DFE

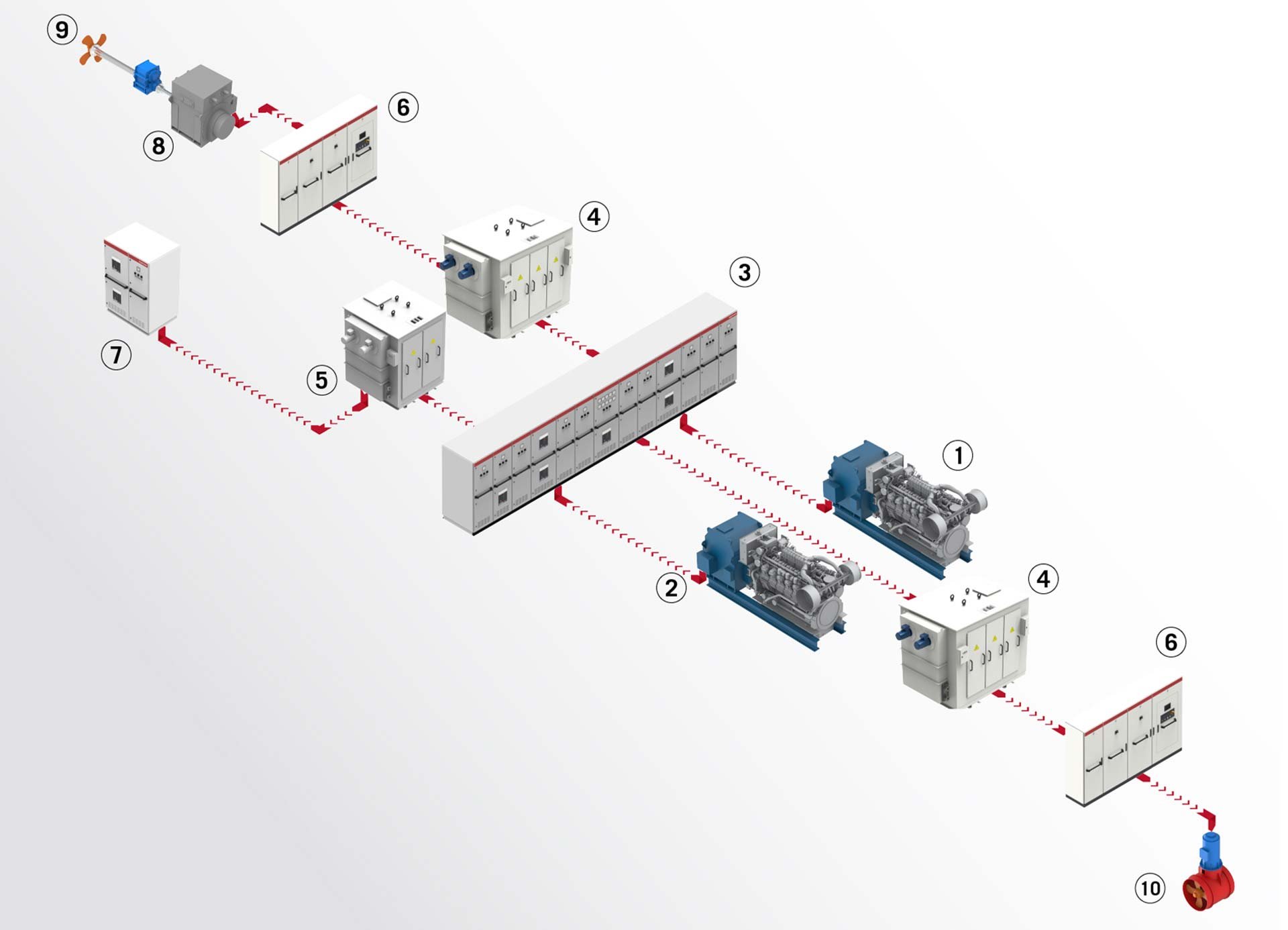

DFE Diesel Electric Propusion

more info

X
DFE

Benefits of DFE Electric propulsion System

  • Optimal performance of the propeller
  • Availability of the maximum torque of the propeller
  • Optimal acceleration response
  • Minimal vibration, noise, and smoke emissions
  • Optimization of power installed on board
  • Power provided up to 15.000kW
  • Low operation cost
  • Reduced maintenance

APPLIED TO THE FOLLOWING TYPES OF VESSELS:

  • Platform Supply Vessels PSV
  • Cable Lying vessels CLV
  • Multipurpose vessels
  • Diving Support Vessels DSV
  • Subsea Construction Vessels
  • Tugs
  • Dredgers
  • Stand by vessels
  • Tankers
  • RoRo
  • RoPax
  • Bulk carriers
  • Ferries
  • Fall Pipe Vessels
  • Live Fish Carrier Vessels
  • Heavy Lift Carriers
  • Wind Mill installation Vessels
  • Cruise Vessels
  • Yatchs

DOWNLOAD

AFE

AFE Diesel Electric Propulsion

more info

X
AFE

The main advantages of the transformerless AFE Topology, together with the ones related to DFE, are:

  • Size-Weight optimization. Transformerless configuration, cabling simplicity
  • Supply Quality. THD improvement
  • Stability. Higher compensation capability under load transients
  • Energy saved from the stopping of the propeller
  • DC Bus Regulation. Better performance under grid voltage transients
  • Unitary Power Factor. Reduction of DE Generator size
  • Less cabling
  • Layout flexibility
  • Saving in hull space

APPLIED TO THE FOLLOWING TYPES OF VESSELS:

  • Platform Supply Vessels PSV
  • Cable Lying vessels CLV
  • Multipurpose vessels
  • Diving Support Vessels DSV
  • Subsea Construction Vessels
  • Tugs
  • Dredgers
  • Stand by vessels
  • Tankers
  • RoRo
  • RoPax
  • Bulk carriers
  • Ferries
  • Fall Pipe Vessels
  • Live Fish Carrier Vessels
  • Heavy Lift Carriers
  • Wind Mill installation Vessels
  • Cruise Vessels
  • Yatchs

DOWNLOAD

DC

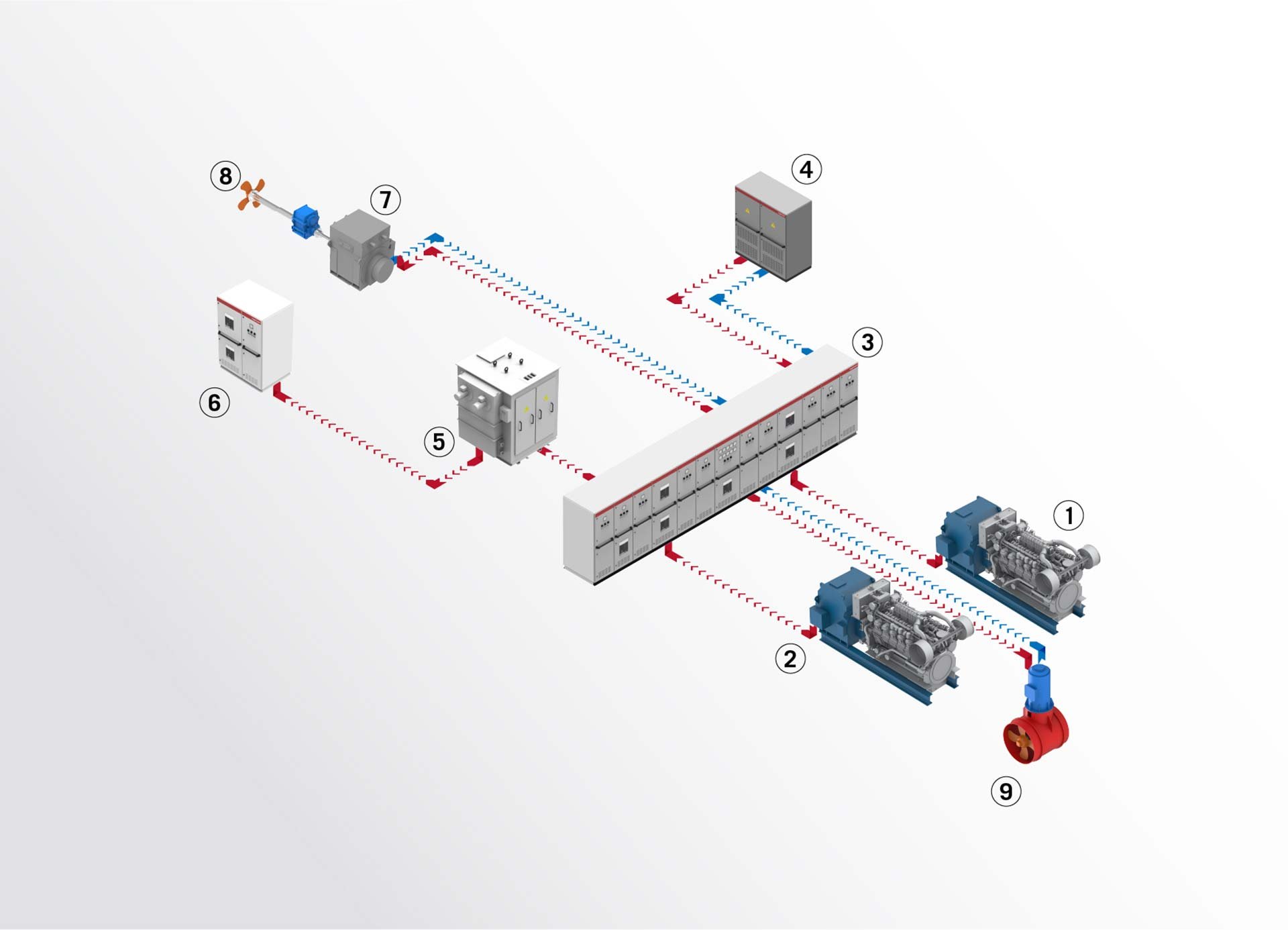

DC Distribution

more info

X
DC-distribution

Benefits of DC distribution System

  • High energy efficiency: up to 30% savings in fuel depending on the vessel, its application and its operating modes
  • Permits the operation of gensets at variable speed, always looking for the operating point with minimum fuel specific consumption
  • Compact, highly-reliable and safe solution: Design procedure based on recommendations and standards defined by the most important Classification Societies in the sector. Guarantees stability, signal & power quality and system protection by design
  • Efficient integration of electrical energy storage systems
  • Electrical propulsion with the option to operate at zero emissions from the batteries
  • Vessel power system integration with ON-SHORE connection
  • Versatile and highly-dynamic control, management and reconfiguration of energy and power flows

APPLIED TO THE FOLLOWING TYPES OF VESSELS:

  • Ferries

DOWNLOAD

PTI/PTO

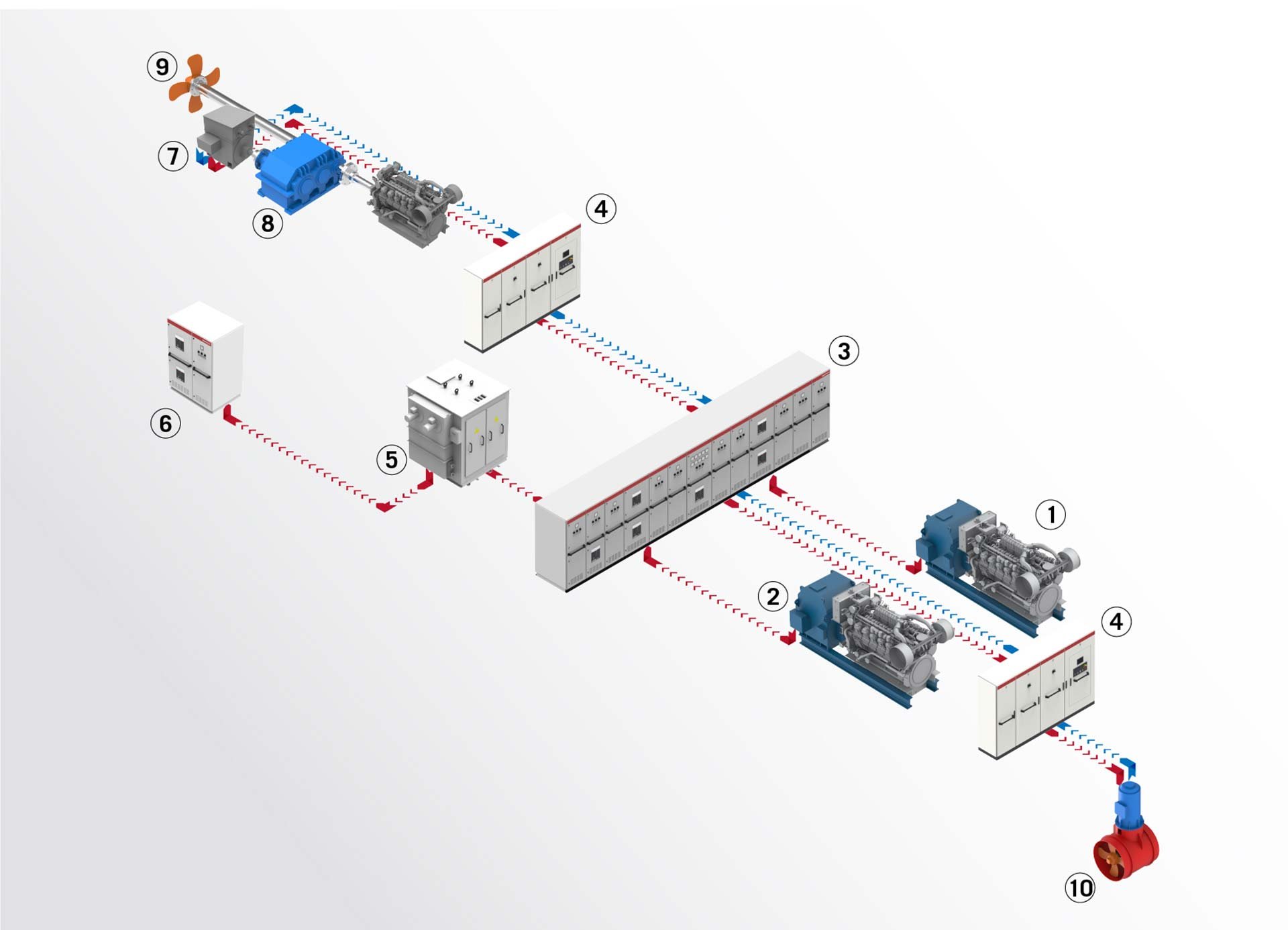

PTI/PTO Hybrid Propulsion

more info

X
PTI-PTO

Advantages of the Hybrid System

  • Reduced emissions and fuel consumption, as the result of reduced diesel engine´s speed following the optimization of operating modes
  • Quick and easy switching between the different operating modes , thus making the system highly-flexible
  • Increased life cycle of gensets and propellers, given that the number of their operating hours is reduced. Likewise, the maintenance intervals are longer, resulting in reduced associated costs
  • Increased propulsion options. Using INGEDRIVE™, the electrical machine can work as a generator or as a motor. When it works as a motor, it can work alone or together with the main diesel engine
  • Redundant and highly reliable propulsion system due to the fact that the main propeller can be driven by the diesel engine and the electrical motor, Increased system’s safety due to the Power Take Home (PTH) functionality.
  • Reduced Acoustic noise and vibrational levels, thus increasing comfort on board

APPLIED TO THE FOLLOWING TYPES OF VESSELS:

  • Tankers
  • RoRo
  • RoPax
  • Bulk carriers
  • Ferries

DOWNLOAD
